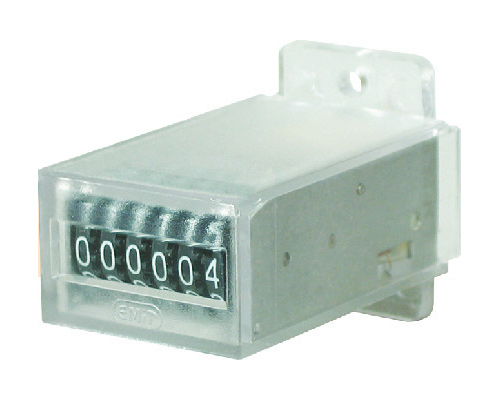

EM28 – Totalizer – Electric impulse counter
- Figures: 6
- Size of figures: 4×2.8 mm
- Mounting: Base
- Connection: Flying leads, Pins or Faston
- Voltage: 5-6-12-24 VDC
- Diode: Optional
- Tolerance: -20% +30%
- Cicle: 50% c.p.s.
- Máx. speed: 25 c.p.s.
- Consumption: 140 a 180 mA
- Test: 5000 c at 25 c.p.s.
- Weight: 50 g
Description
EM28 – Totalizer – Electric impulse counter
Wheels, pinions and lever: Acetalic Resin.
Cover: Transparent Polycarbonate.
Metallic Chassis: Alloy Ferric-Aluminic anti-corrosion.
Pins and Fastons: Silver plated.
Axis: Stainless Steel AISI-304.
- Figures: 6
- Size of figures: 4×2.8 mm
- Mounting: Base
- Connection: Flying leads, Pins or Faston
- Voltage: 5-6-12-24 VDC
- Diode: Optional
- Tolerance: -20% +30%
- Cicle: 50% c.p.s.
- Máx. speed: 25 c.p.s.
- Consumption: 140 a 180 mA
- Test: 5000 c at 25 c.p.s.
- Weight: 50 g
Recommended for:
Industrial Machines, Vending, Slot Machines, Video Games, … etc.

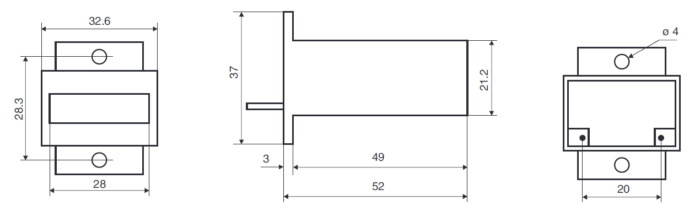

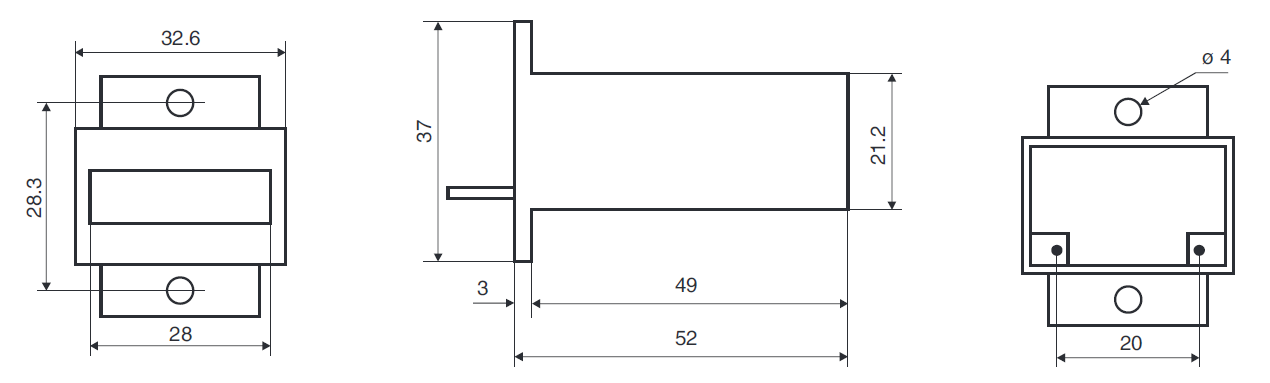

Technical drawings
