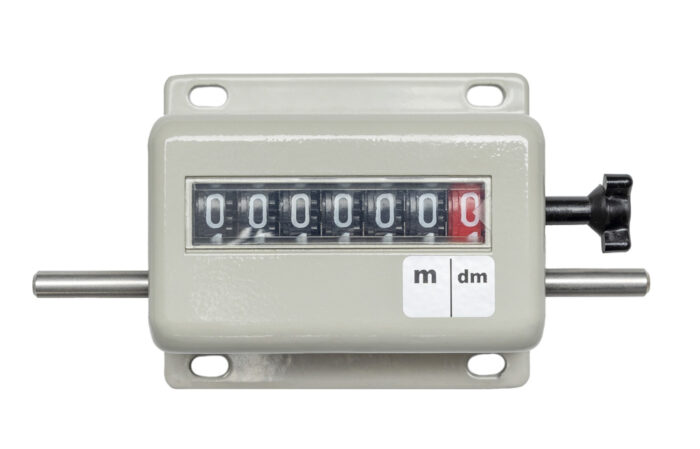

CM – Meter counter
- Number of digits: 6 + 1 decimeters
- Height of digits: 8 mm
- Shaft diameter: 7 mm
- Max. counting speed: 125 meters/minute
- Overall dimensions: 92 x 80 x 50
- RATIO: 1:5 (1 turn of the shaft = law 5)
(If you use the wheel with 500 mm development; 2 turns = 1 meter)
Description
CM – Meter counter with removable key
- Number of digits: 6 + 1 decimeters
- Height of digits: 8 mm
- Shaft diameter: 7 mm
- Max. counting speed: 125 meters/minute
- Overall dimensions: 92 x 80 x 50
- RATIO: 1:5 (1 turn of the shaft = law 5)
(If you use the wheel with 500 mm development; 2 turns = 1 meter)
Recommended for:
Textile machinery, measuring of fabrics, frames
Technical drawings
