MECHANICAL AND ELECTROMECHANICAL COUNTERS
Technique, precision and quality
100% MADE IN ITALY
Rancati, your ideal partner for measurement, control and visualization.
PRECISE AND RELIABLE MEASUREMENT SOLUTIONS
Experience and innovation at the service of industry.
Rancati is an Italian company with over 75 years of experience in the design and production of measurement, control and visualization instruments for various industrial sectors.
Founded in 1948, Rancati has made the precision and reliability of its products its trademark, gaining the trust of customers all over the world.
The wide range of Rancati products includes stroke counters, indicators, counters, pulse counters, tachometers, displays, wheels and height displays, all characterized by high quality and technological standards.
PRODUCT CATEGORIES
SOME PRODUCTS

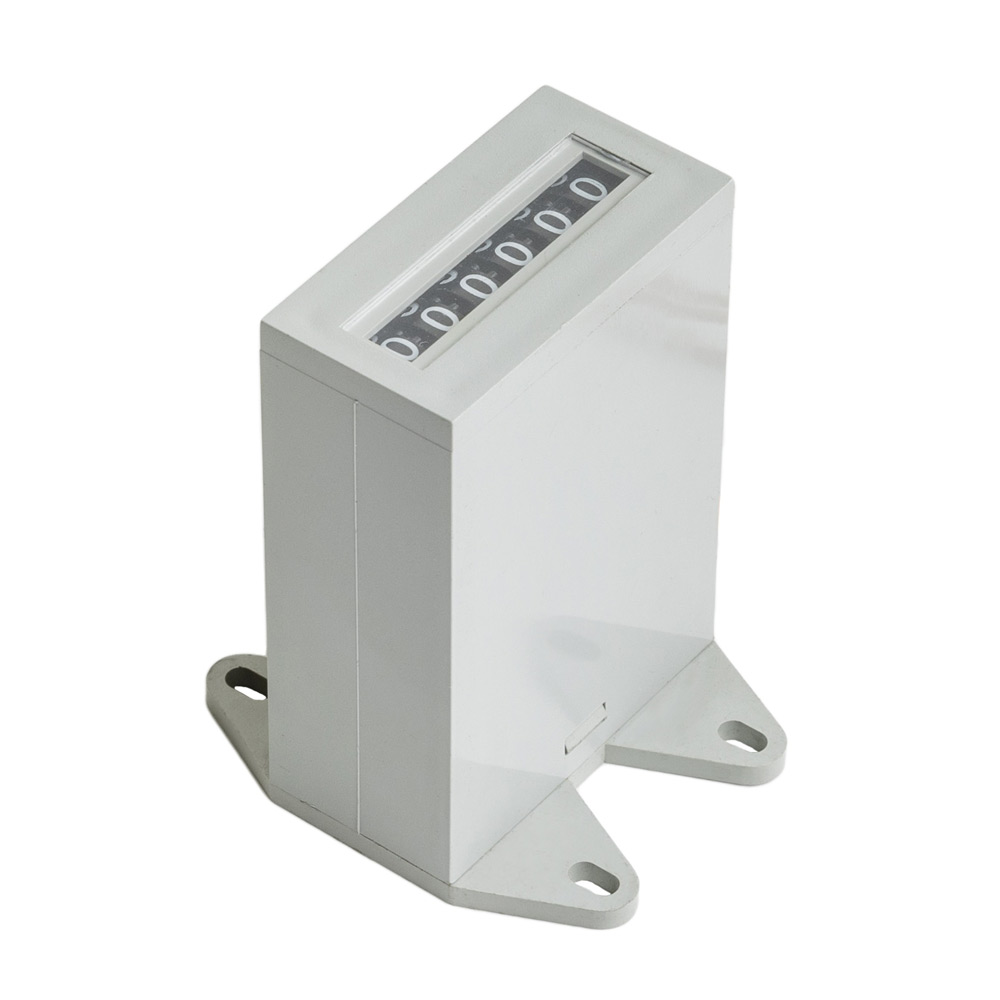

EM22 – Totalizer – Electric impulse counter
- Figures: 7
- Size of figures: 4x2.8 mm
- Mounting: Base
- Connection: Flying leads
- Voltage: 5-6-12-24 VDC - 110-220 VAC
- Diode: Optional
- Tolerance:VDC: -20% +30% - VAC: ±10%
- Cicle: 50% Coup/pause
- Máx. speed: VDC:25 c.p.s. - VAC:10 c.p.s.
- Consumption: VDC:140 a 180 mA - VAC:12.5 a 25 mA
- Test: VDC: 5000 c. at 25 c.p.s. - VAC: 5000 c. at 10 c.p.s.
- Weight: 60 g

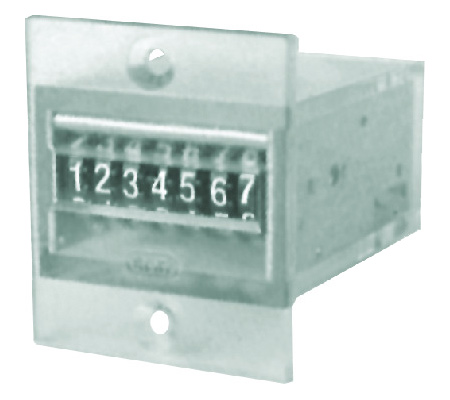

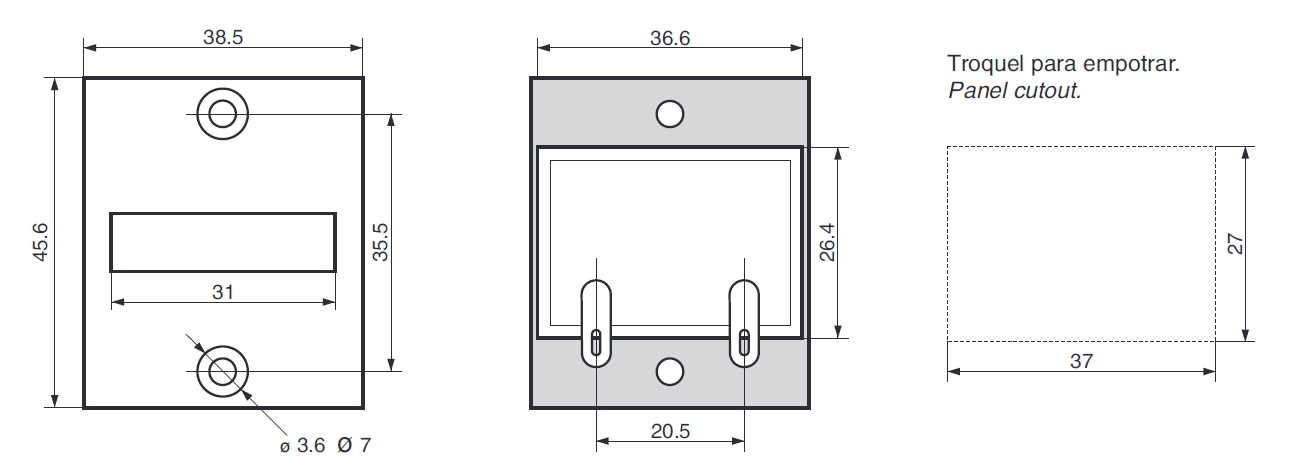

EM38 – Totalizer – Electric impulse counter
- Figures: 7
- Size of figures: 4x2.8 mm
- Mounting: Panel Screw
- Connection: Flying leads, Pins or Faston
- Voltage: 5-6-12-24 VDC - 110-220 VAC
- Diode: Optional
- Tolerance:VDC: -20% +30% - VAC: ±10%
- Cicle: 50% Coup/pause
- Máx. speed: VDC:25 c.p.s. - VAC:10 c.p.s.
- Consumption: VDC:140 a 180 mA - VAC:12.5 a 25 mA
- Test: VDC: 5000 c. at 25 c.p.s. - VAC: 5000 c. at 10 c.p.s.
- Weight: 65 g

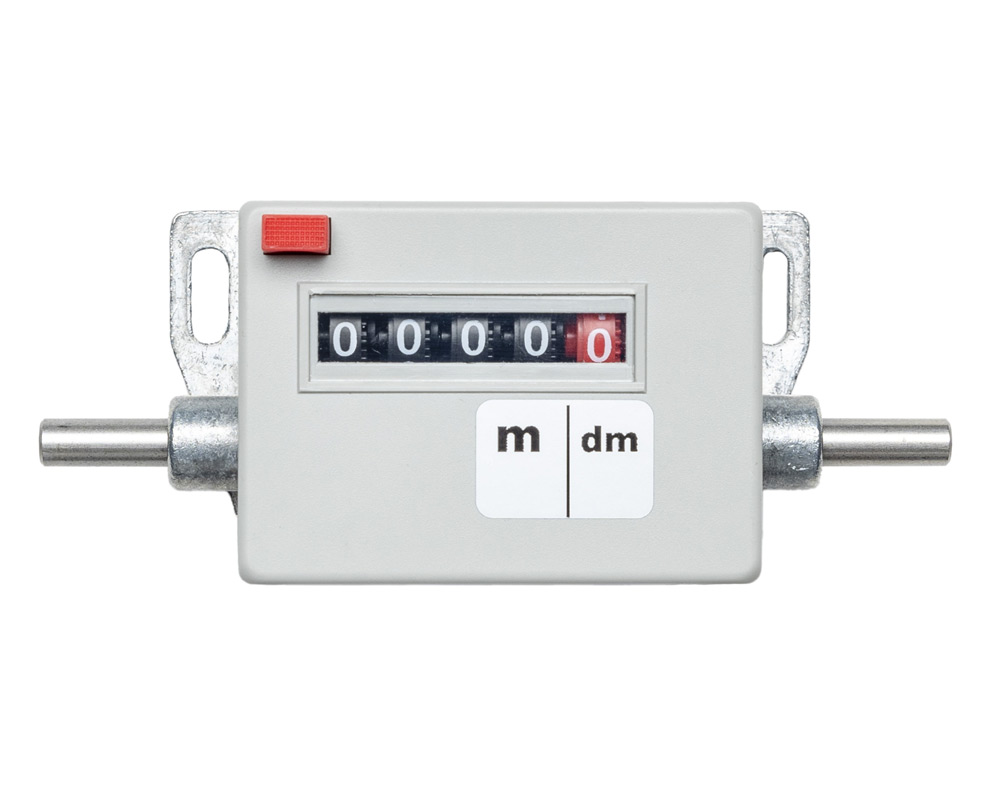

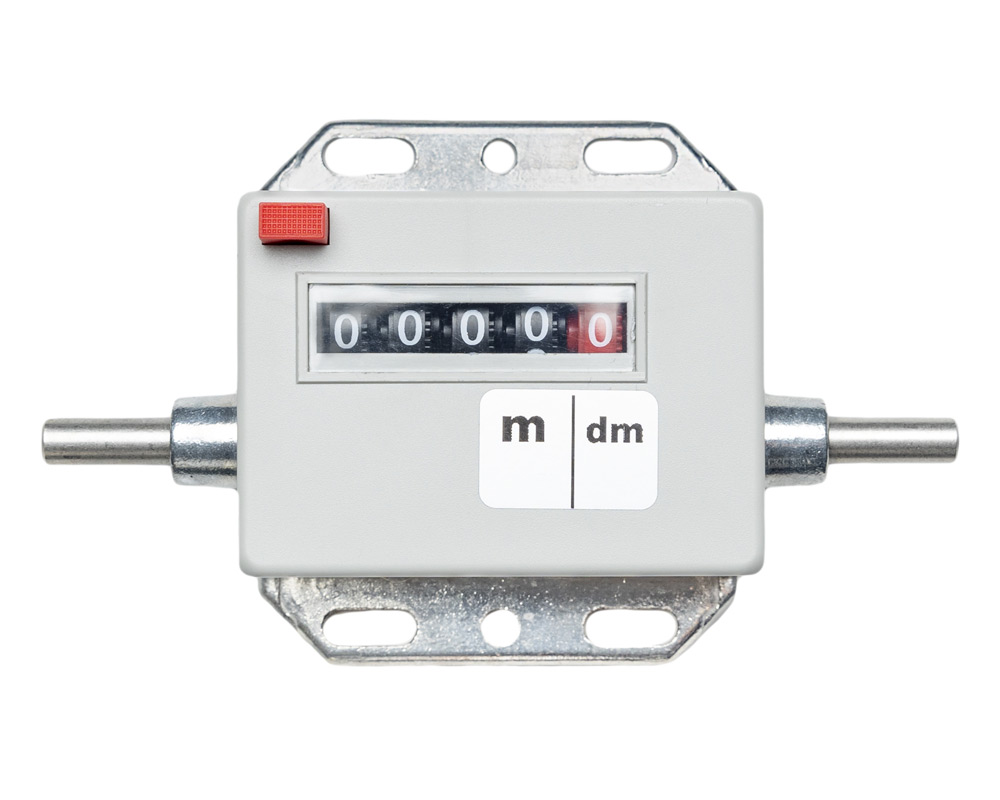

CMP – Meter Counter with zeroing
- Meter counter with zeroing
- Meter counter 4 digits + 2 decimals. Revolution Counter: 5 whole digits.
- Digit height: 8 mm - shaft D.7mm - bilateral command.
- Direction of rotation: 0 = clockwise; A = anti-clockwise.
- Maximum speed counter: 500 meters per minute.
- Overall dimensions: 92x80x54.
- Ratio 2:1 suitable for wheel development 500 mm (2 laps = 1 meter)

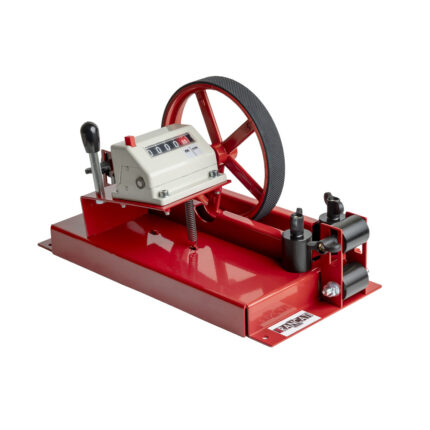

Meter Counters with desktop base
- Meter counter with reset button, with base for work table to measure pipes, bars, cables, sheaths.
- 100% made in Rancati.
- Base dimensions 350mmx170mm, overall height 200mm.
- Fire painted.
- Complete with base, fixable with both clamps and screws.
- Adjustable width cable guides with quick butterfly fastening, in Teflon.

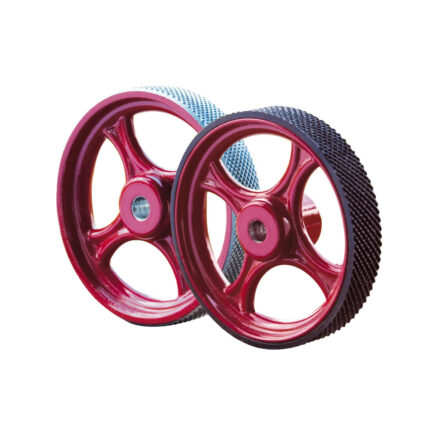

- Equipped with Rancati CMP counter (Meters, DM, CM) with 5 encrypted rollers, SV500 rubberized knurled metric wheel diameter 159.15mm (every 2 turns = 1 meter).
CMB – Meter counter
- Meter counters with zeroing
- Meter counters for belts with 5 digits + 2 decimals.
- Digit height: 8 mm - shaft D.7 mm - right or left control.
- Direction of rotation: 0 = clockwise; A = anti-clockwise.
- Maximum speed: 50 meters per minute
- Overall dimensions: 92x80x50.
- Adds in one direction of rotation and subtracts in the opposite direction.
- Ratio 1:20 - development of the drum 50 mm (2 laps = 1 meter).
R75 – Meter Counter pre-dispositioned decounting with zeroing button
- Meter Counter pre-dispositioned decounting with zeroing button
- 4 digits + 1 decimal. Digit height: 8 mm - shaft D.7 mm. - Bilateral command.
- Direction of rotation: 0 = clockwise; A = anti-clockwise.
- Maximum speed: 500 meters per minute
- Overall dimensions: 92x80x69 - Microswitch: 10 Amperes.
- Ratio 2:1 suitable for wheel development 500 mm (2 laps = 1 meter)
EM20 – Totalizer – Electric impulse counter
- Figures: 7
- Size of figures: 4x2.8 mm
- Mounting: Base
- Connection: Flying leads, Pins or Faston
- Voltage: 5-6-12-24 VDC - 110-220 VAC
- Diode: Optional
- Tolerance:VDC: -20% +30% - VAC: ±10%
- Cicle: 50% Coup/pause
- Máx. speed: VDC:25 c.p.s. - VAC:10 c.p.s.
- Consumption: VDC:140 a 180 mA - VAC:12.5 a 25 mA
- Test: VDC: 5000 c. at 25 c.p.s. - VAC: 5000 c. at 10 c.p.s.
- Weight: 55 g
R75 – Revolution Counter pre-dispositioned decounting with zeroing button
- Revolution Counter pre-dispositioned decounting with zeroing button
- 4 digits + 1 decimal. Digit height: 8 mm - shaft D.7 mm. - Bilateral command.
- Direction of rotation: 0 = clockwise; A = anti-clockwise.
- Maximum speed: 500 meters per minute
- Overall dimensions: 92x80x69 - Microswitch: 10 Amperes.
- Ratio 2:1 suitable for wheel development 500 mm (2 laps = 1 meter)
Typical uses of our products
Here are some typical uses of our product lines:
STROKE COUNTER
- Grinders
- Coffee machines
- Billiards
- Equipment for switches
- Tool machinery that has the need to count and minimum dimensions
- Knitting machines
- Presses
- Shearing
- Agricultural machinery
- Balers
- Automatic machinery for mass production
REVOLUTION COUNTER
- Deep sea fishing rods
- Winders
- Coiling
- Shears
- Cutters
METER COUNTER
- Measuring thin objects
- Road measuring
- Textile machines for measuring fabrics
- Measuring of plastic sheets
- Measuring of cables, pipes, ropes, bars
- Winders
- Winding machines
COIN COUNTER
- Coin machines(coins, tokens video games)
MANUAL COUNTERS
- Statistical survey
- Traffic control
- Fruit counting

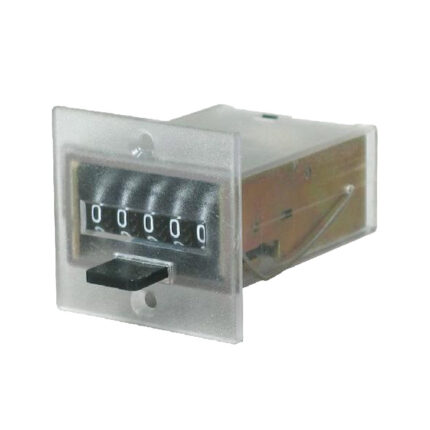

IMPULSE COUNTER
- Machines where the count is made by micro switches or photoelectric cells
- Video games
- Slot machines
- Beverage vending machines

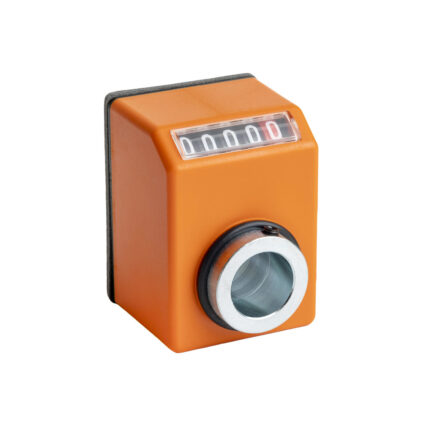

READOUTS
- Machines for woodworking
- Machines for packaging (box factories)
