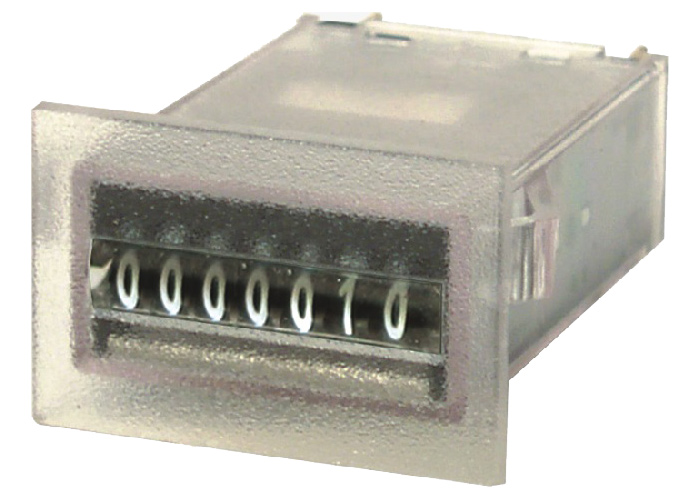

EM-2011 – Minicounter – Electric impulse counter
- Figures: 7 (op. 3,4,5,6)
- Size of figures: view 4×1.75 mm
- Connection: Pins and Flying Leads
- Voltage: 4,5-5-6-12-24 VDC
- Diode: Optional
- Tolerance: -5% +30%
- Cicle: 50% Coup/pause
- Máx. speed: 15 c.p.s.
- Consumption: 0,4 W
- Test: 5000 c at 15 c.p.s.
- Weight: 15 g
Description
EM-2011 – Minicounter – Electric impulse counter
Wheels, pinions and lever: Acetalic Resin.
Cover: Transparent Polycarbonate.
Metallic Chassis: Acetalic Resin.
Pins and Fastons: Silver plated.
Axis: Stainless Steel AISI-304.
- Figures: 7 (op. 3,4,5,6)
- Size of figures: view 4×1.75 mm
- Connection: Pins and Flying Leads
- Voltage: 4,5-5-6-12-24 VDC
- Diode: Optional
- Tolerance: -5% +30%
- Cicle: 50% Coup/pause
- Máx. speed: 15 c.p.s.
- Consumption: 0,4 W
- Test: 5000 c at 15 c.p.s.
- Weight: 15 g
Recommended for:
Mounting on panel.
Panel Board, industrial machines, vending, videogames, … etc.

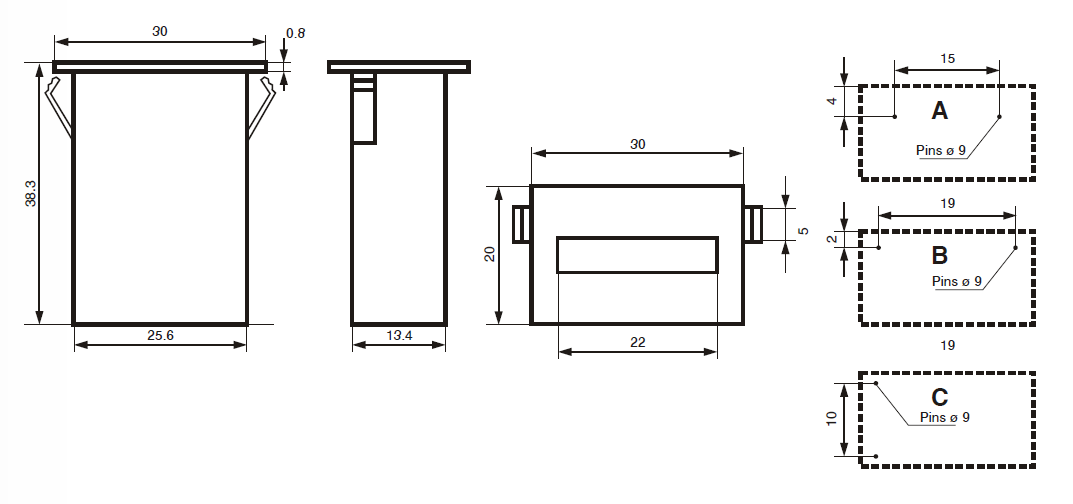

Technical drawings
