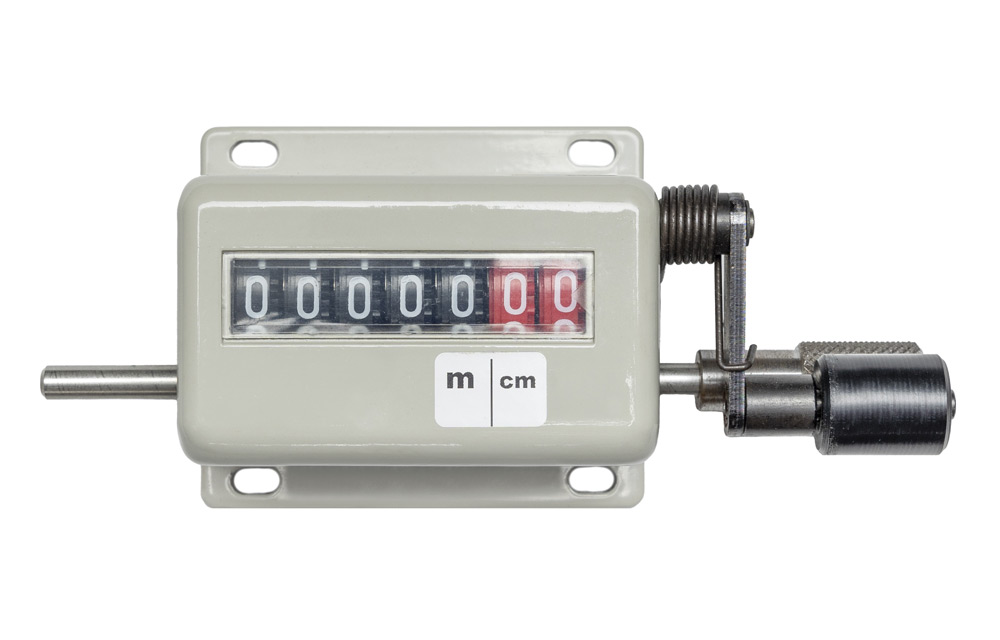

CMB – Meter counter
- Meter counters with zeroing
- Meter counters for belts with 5 digits + 2 decimals.
- Digit height: 8 mm – shaft D.7 mm – right or left control.
- Direction of rotation: 0 = clockwise; A = anti-clockwise.
- Maximum speed: 50 meters per minute
- Overall dimensions: 92x80x50.
- Adds in one direction of rotation and subtracts in the opposite direction.
- Ratio 1:20 – development of the drum 50 mm (2 laps = 1 meter).
Description
Meter counter for measuring thin thicknesses, fabrics, plastics, carpets.

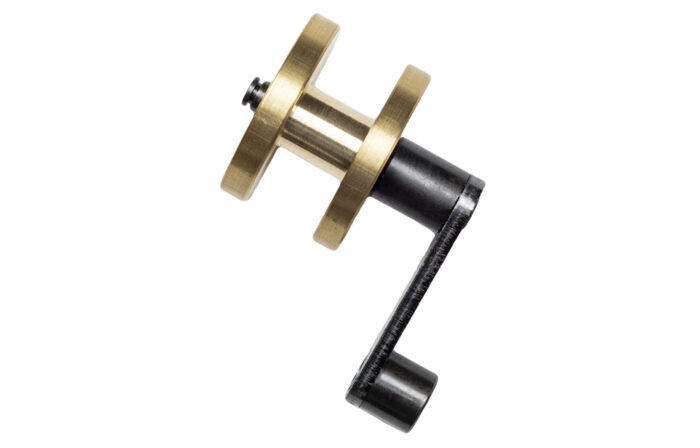

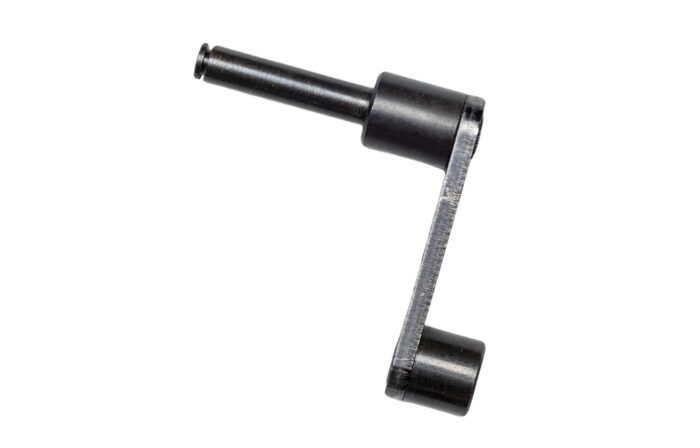

Zero reset with removable key and sliding pressure roller.
- Meter counters with zeroing
- Meter counters for belts with 5 digits + 2 decimals.
- Digit height: 8 mm – shaft D.7 mm – right or left control.
- Direction of rotation: 0 = clockwise; A = anti-clockwise.
- Maximum speed: 50 meters per minute
- Overall dimensions: 92x80x50.
- Adds in one direction of rotation and subtracts in the opposite direction.
- Ratio 1:20 – development of the drum 50 mm (2 laps = 1 meter).
Recommended for:
Frames, textile machinery, thin sheets, paper mills
