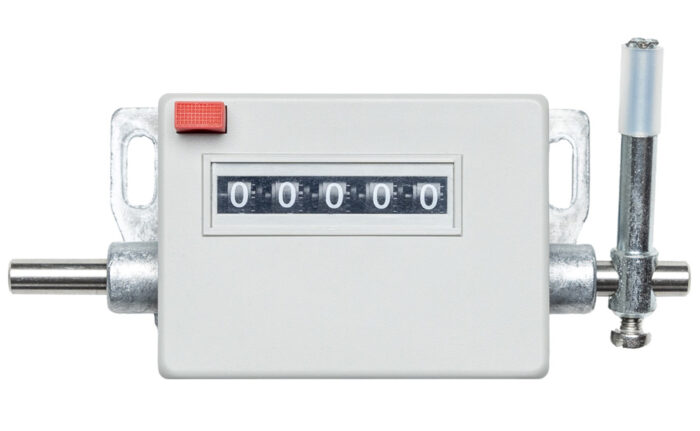

CMR – Stroke counter with zeroing

Model: CMR – Stroke counter with zeroing

Technical data:

• 5-digit Height 4.5mm
• Shaft D.6 mm – bilateral command.
• Direction of rotation: 0 = clockwise; A = anticlockwise.
• Maximum speed: 700 beats per minute.

When ordering, specify:

• Model: CMR with flange mounting
• Output shaft command: dex = right; six = left; Bil = Bilateral (exit both sides)
• Rotation: O = Clockwise; A = Anti-clockwise (looking from the head of the comand shaft)
• Zeroing: S = with zeroing; N = without zeroing
