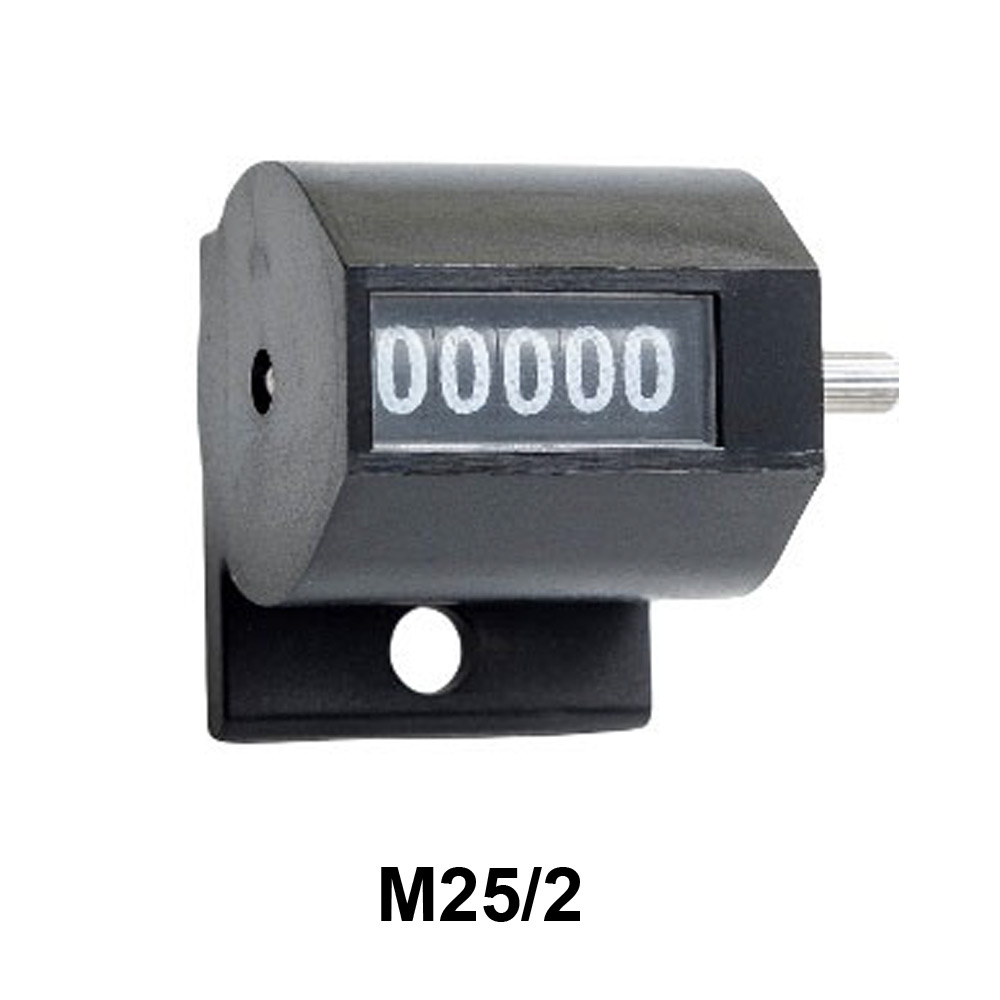

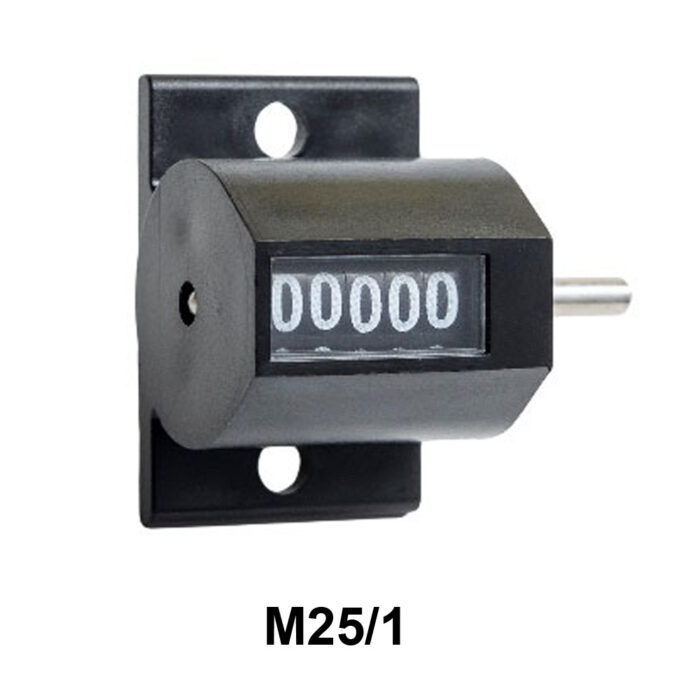

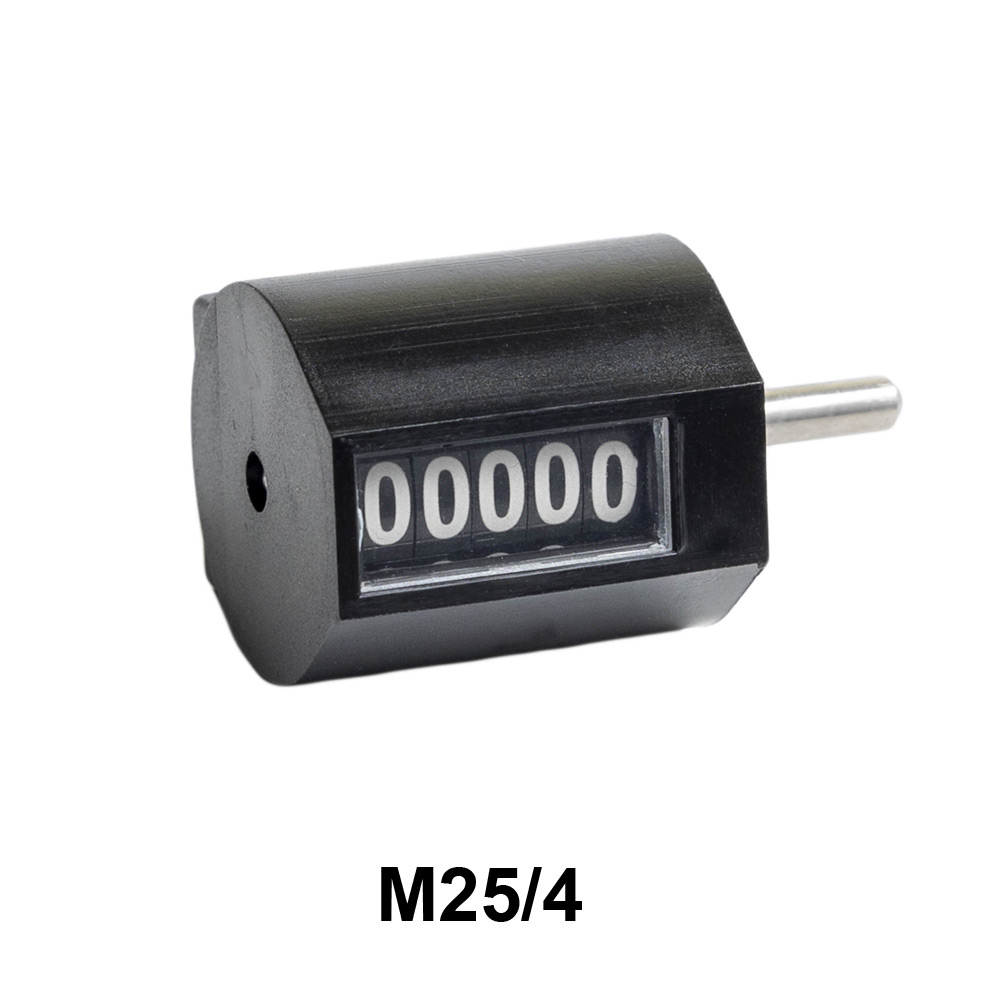

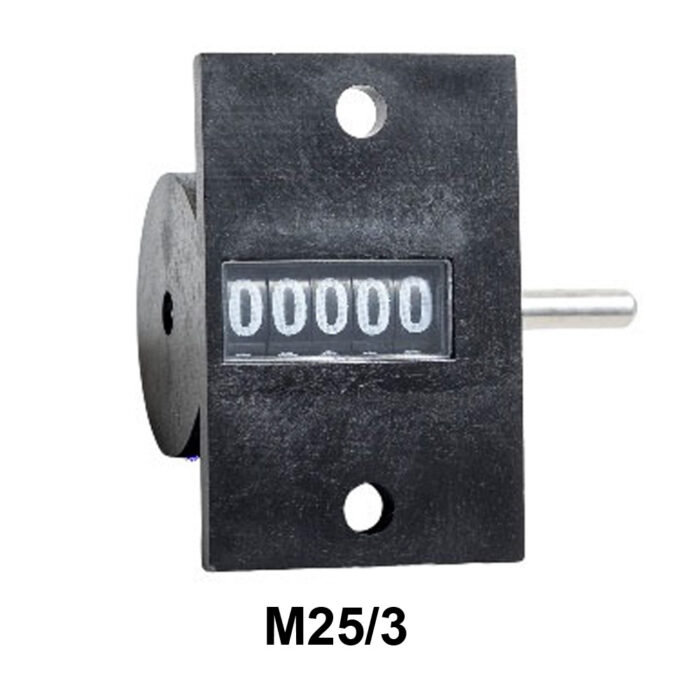

M25 – Stroke Counter without zeroing
- 5 digit height 4.5 mm – shaft D.3 mm – unilateral command
- Direction of rotation: 0 = clockwise; A = anti-clockwise
- Maximum speed: 300 beats per minute
- Overall dimensions: 22,50x32x21

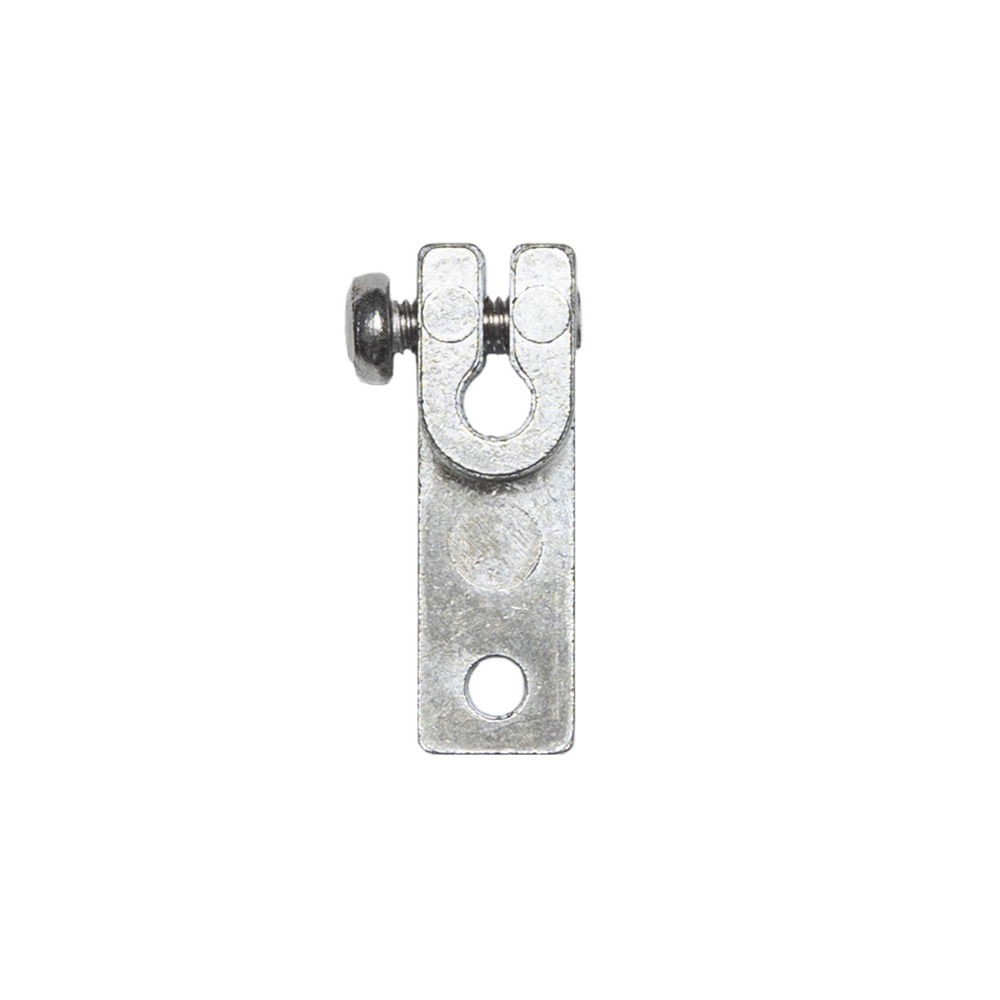

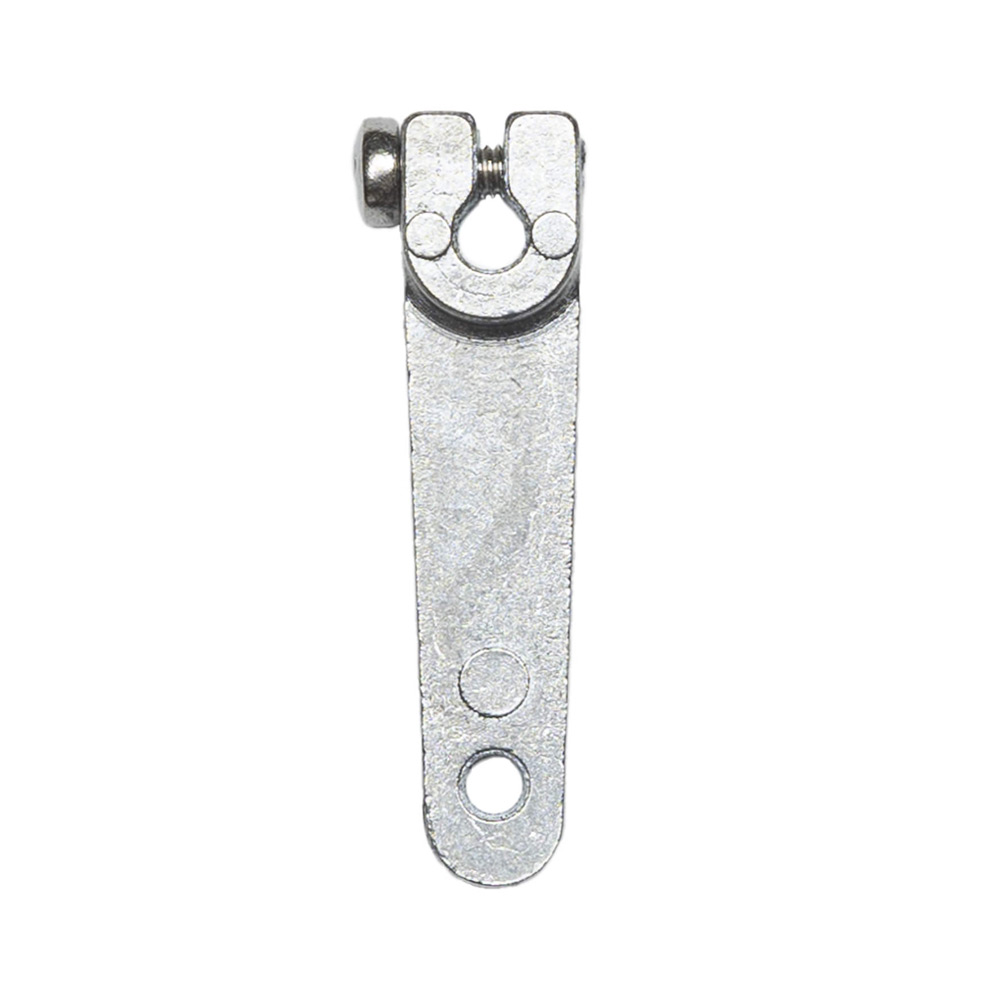

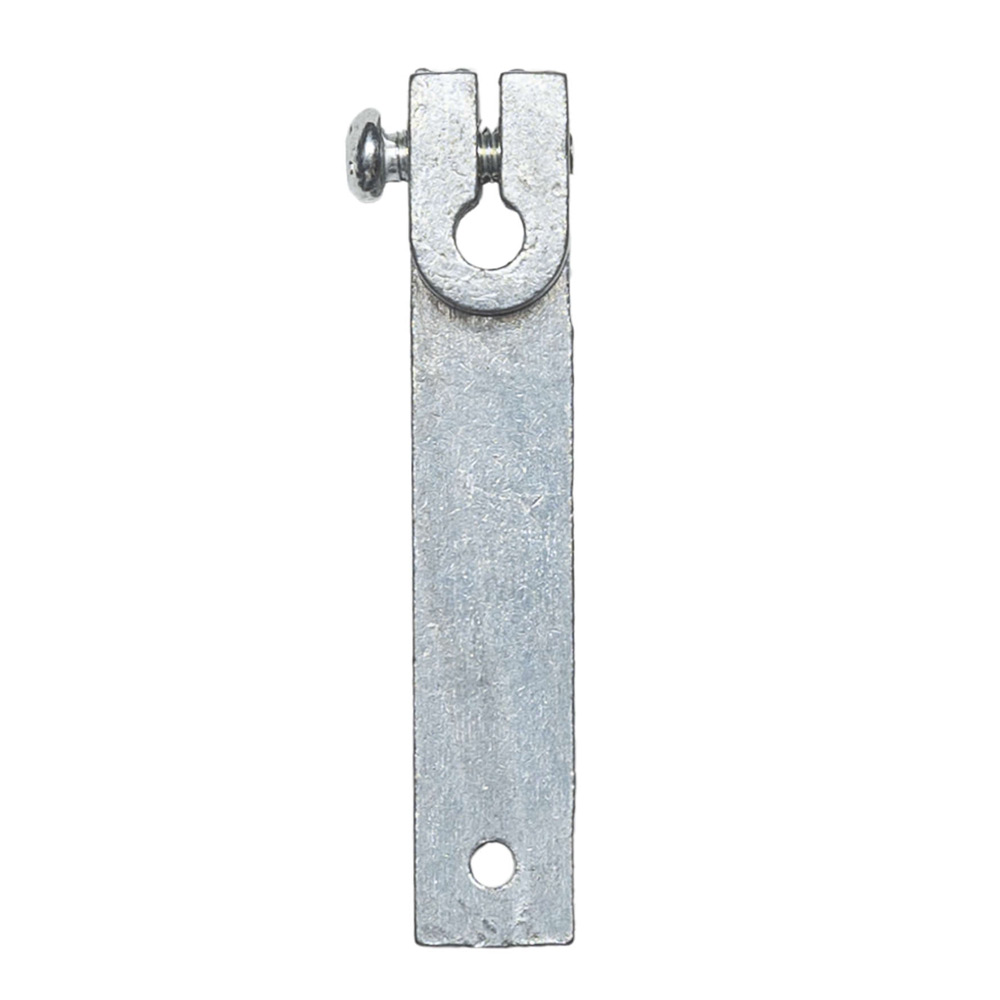

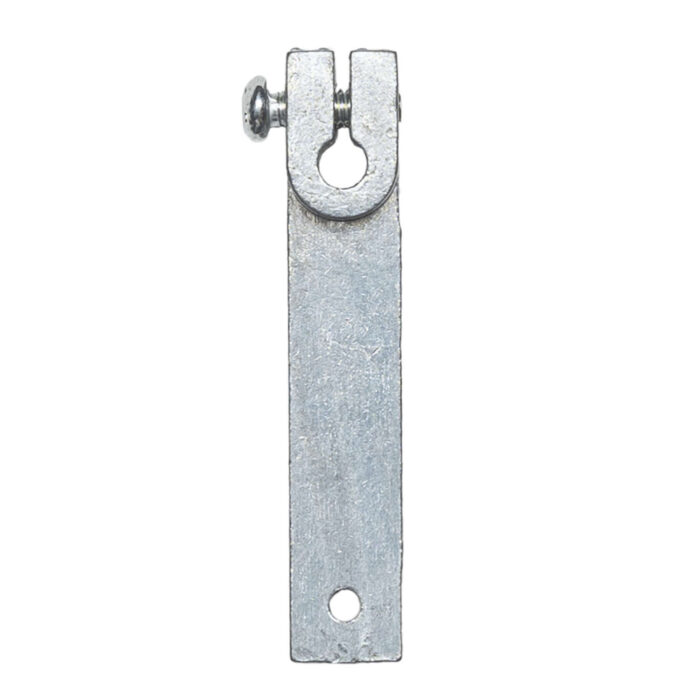

- Lever drive in zama or reinforced fiber glass.
Description
Modello: M25
Technical data:
- 5 digit height 4.5 mm – shaft D.3 mm – unilateral command
- Direction of rotation: 0 = clockwise; A = anti-clockwise
- Maximum speed: 300 beats per minute
- Overall dimensions: 22,50x32x21
- Lever drive in zama or reinforced fiber glass.
When ordering, specify:
- Model: M25
- Output shaft command: dex = right; six = left
- Rotation: O = Clockwise = A = Anti-clockwise (looking from the head of the drive shaft)
Recommended for:
Equipment for switches
Technical drawings
