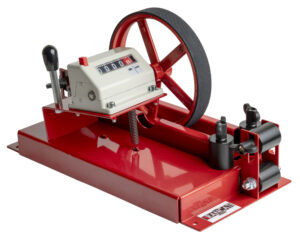

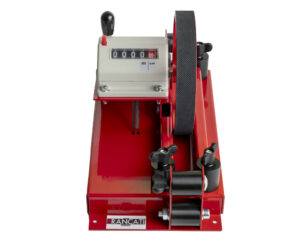

Meter Counters with desktop base
- Meter counter with reset button, with base for work table to measure pipes, bars, cables, sheaths.
- 100% made in Rancati.
- Base dimensions 350mmx170mm, overall height 200mm.
- Fire painted.
- Complete with base, fixable with both clamps and screws.
- Adjustable width cable guides with quick butterfly fastening, in Teflon.
- Equipped with Rancati CMP counter (Meters, DM, CM) with 5 encrypted rollers, SV500 rubberized knurled metric wheel diameter 159.15mm (every 2 turns = 1 meter).
Description
- Meter counter with reset button, with base for work table to measure pipes, bars, cables, sheaths.
- 100% made in Rancati.
- Base dimensions 350mmx170mm, overall height 200mm.
- Fire painted.
- Complete with base, fixable with both clamps and screws.
- Adjustable width cable guides with quick butterfly fastening, in Teflon.
- Equipped with Rancati CMP counter (Meters, DM, CM) with 5 encrypted rollers, SV500 rubberized knurled metric wheel diameter 159.15mm (every 2 turns = 1 meter).
Model: Meter Counters with desktop base
Technical data:
- Number of digits: 5 (4 meters + 1 decimeters and cm)
- Digit height: 8 mm
- Shaft diameter: 7mm
- Maximum counting speed: 500 rpm
- Max measurable length: 9999.99 m
- Measurable diameters: 2~25mm
- Weight: 2.9kg
Recommended for:
Linear processing, manufacturing cables, strips and bars.
Technical drawings
